Name: ELEC.MVUnderGroundCable

Display Field: MATERIAL

Type: Feature Layer

Geometry Type: esriGeometryPolyline

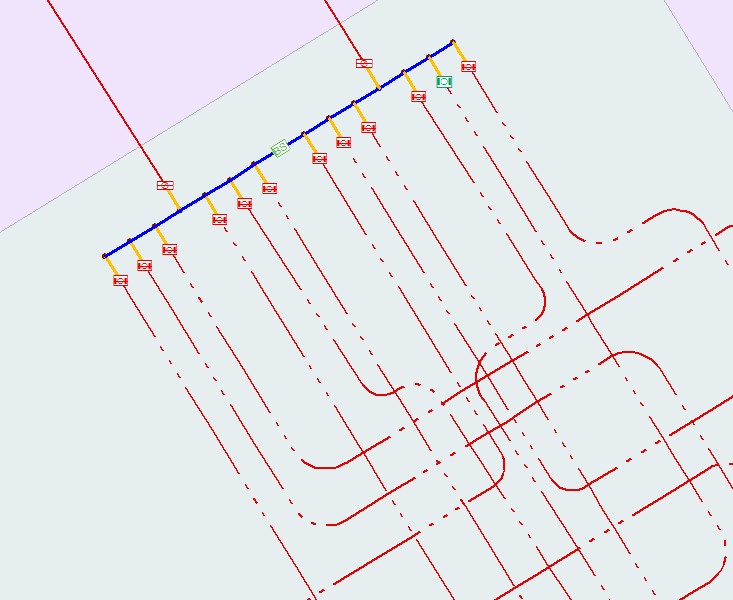

Description: Medium voltage underground cables are connected with joints along the network path and at substation location, connected to dynamic protective devices and switches.

Service Item Id: 4a293ac7bc75400893c165734e8faa03

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 154350.157873344
YMin: 325374.550892685
XMax: 243894.955817509
YMax: 489015.516589101
Spatial Reference: 2932  (2932)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: SUBTYPECD
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Style: esriSLSSolid
Color: [130, 130, 130, 255]
Width: 1
Default Label:
UniqueValueInfos:
• Value: 1
  Label: 3.3kV Underground Cable
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [184, 207, 252, 255]
  Width: 1
• Value: 2
  Label: 11kV Underground Cable
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [179, 252, 182, 255]
  Width: 1
• Value: 3
  Label: 22kV Underground Cable
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [252, 202, 179, 255]
  Width: 1
• Value: 4
  Label: 33kV Underground Cable
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [252, 182, 251, 255]
  Width: 1
• Value: 5
  Label: Customer Cable
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [207, 252, 246, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: SUBTYPECD

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: ObjectID )
• ENABLED ( type: esriFieldTypeSmallInteger, alias: Enabled , Coded Values: [0: False] , [1: True] )
• SUBTYPECD ( type: esriFieldTypeInteger, alias: SubtypeCD )
• MATERIAL ( type: esriFieldTypeString, alias: Material, length: 4 , Coded Values: [CU: Copper] , [UNK: Unknown] , [AL: Aluminum] )
• CONDUCTORSIZE ( type: esriFieldTypeInteger, alias: Conductor Size , Coded Values: [16: 16 mm2] , [25: 25 mm2] , [35: 35 mm2] , ...17 more... )
• NOMINALVOLTAGE ( type: esriFieldTypeInteger, alias: Nominal Voltage , Coded Values: [230: 230 Volts] , [415: 415 Volts] , [11: 11 KV] , ...5 more... )
• PHASEDESIGNATION ( type: esriFieldTypeInteger, alias: Phase Designation , Coded Values: [4: R] , [2: Y] , [1: B] , ...4 more... )
• INSTALLATIONDATE ( type: esriFieldTypeDate, alias: Installation Date, length: 8 )
• FEEDERID ( type: esriFieldTypeString, alias: FeederID, length: 20 )
• FEEDERID2 ( type: esriFieldTypeString, alias: FeederID2, length: 20 )
• FEEDERINFO ( type: esriFieldTypeInteger, alias: FeederInfo )
• CONNECTIONSOURCE ( type: esriFieldTypeString, alias: Connection Source, length: 100 )
• CONNECTIONDESTINATION ( type: esriFieldTypeString, alias: Connection Destination, length: 100 )
• INSULATIONMATERIAL ( type: esriFieldTypeString, alias: Insulation Material, length: 6 , Coded Values: [XLPE: XLPE] , [PILC: PILC] , [OILF: OILF] , ...17 more... )
• BURIEDDEPTH ( type: esriFieldTypeDouble, alias: Buried Depth )
• DATASOURCE ( type: esriFieldTypeString, alias: Data Source, length: 4 , Coded Values: [CAD: CADImport] , [GDB: GeoDatabase] , [SHP: ShapeFiles] , ...15 more... )
• CONFIDENCE ( type: esriFieldTypeInteger, alias: Confidence )
• RELIABLE ( type: esriFieldTypeInteger, alias: Reliable )
• GFCODE ( type: esriFieldTypeString, alias: GFCode, length: 20 )
• STATUSINDICATOR ( type: esriFieldTypeInteger, alias: Status Indicator , Coded Values: [1: In Service] , [32: Out of Service] , [0: Unknown] , ...6 more... )
• DATECREATED ( type: esriFieldTypeDate, alias: Date Created, length: 8 )
• DATEMODIFIED ( type: esriFieldTypeDate, alias: Date Modified, length: 8 )
• NUMBEROFCORES ( type: esriFieldTypeInteger, alias: Number Of Cores , Range: [1, 6] )
• SHAPE ( type: esriFieldTypeGeometry, alias: Shape )
• SHAPE.LEN ( type: esriFieldTypeDouble, alias: SHAPE.LEN )

Types:

ID: 2
Name: 11kV Underground Cable
Domains:
• ENABLED:
  Inherited
• MATERIAL:
  Inherited
• CONDUCTORSIZE:
  Coded Values: [70: 70 mm2] , [95: 95 mm2] , [120: 120 mm2] , ...9 more...
• NOMINALVOLTAGE:
  Inherited
• PHASEDESIGNATION:
  Inherited
• INSULATIONMATERIAL:
  Inherited
• DATASOURCE:
  Inherited
• STATUSINDICATOR:
  Inherited
• NUMBEROFCORES:
  Inherited

---

ID: 1
Name: 3.3kV Underground Cable
Domains:
• ENABLED:
  Inherited
• MATERIAL:
  Inherited
• CONDUCTORSIZE:
  Coded Values: [70: 70 mm2] , [95: 95 mm2] , [120: 120 mm2] , ...9 more...
• NOMINALVOLTAGE:
  Inherited
• PHASEDESIGNATION:
  Inherited
• INSULATIONMATERIAL:
  Inherited
• DATASOURCE:
  Inherited
• STATUSINDICATOR:
  Inherited
• NUMBEROFCORES:
  Inherited

---

ID: 3
Name: 22kV Underground Cable
Domains:
• ENABLED:
  Inherited
• MATERIAL:
  Inherited
• CONDUCTORSIZE:
  Coded Values: [70: 70 mm2] , [95: 95 mm2] , [120: 120 mm2] , ...9 more...
• NOMINALVOLTAGE:
  Inherited
• PHASEDESIGNATION:
  Inherited
• INSULATIONMATERIAL:
  Inherited
• DATASOURCE:
  Inherited
• STATUSINDICATOR:
  Inherited
• NUMBEROFCORES:
  Inherited

---

ID: 4
Name: 33kV Underground Cable
Domains:
• ENABLED:
  Inherited
• MATERIAL:
  Inherited
• CONDUCTORSIZE:
  Coded Values: [70: 70 mm2] , [95: 95 mm2] , [120: 120 mm2] , ...9 more...
• NOMINALVOLTAGE:
  Inherited
• PHASEDESIGNATION:
  Inherited
• INSULATIONMATERIAL:
  Inherited
• DATASOURCE:
  Inherited
• STATUSINDICATOR:
  Inherited
• NUMBEROFCORES:
  Inherited

---

ID: 5
Name: Customer Cable
Domains:
• ENABLED:
  Inherited
• MATERIAL:
  Inherited
• CONDUCTORSIZE:
  Coded Values: [70: 70 mm2] , [95: 95 mm2] , [120: 120 mm2] , ...9 more...
• NOMINALVOLTAGE:
  Inherited
• PHASEDESIGNATION:
  Inherited
• INSULATIONMATERIAL:
  Inherited
• DATASOURCE:
  Inherited
• STATUSINDICATOR:
  Inherited
• NUMBEROFCORES:
  Inherited

---

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
